Precision Spoofing and Multi-Frequency Suppression Anti Drone System Omnidirectional Denial

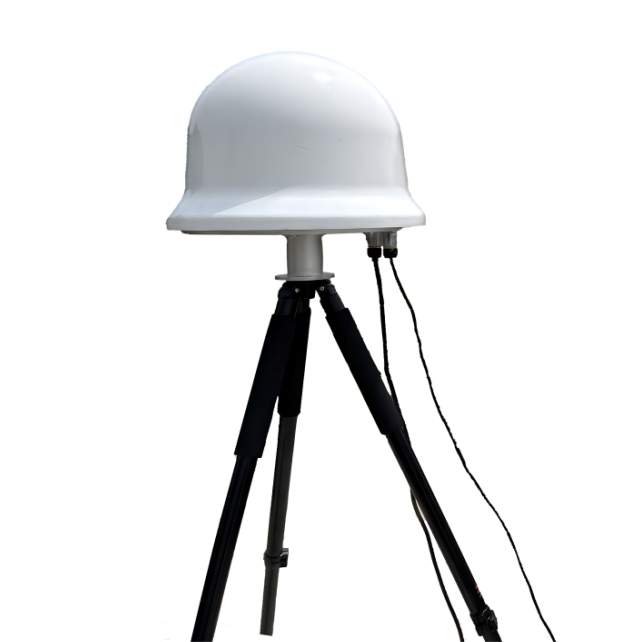

Name: Precision Spoofing and Multi-Frequency Suppression Anti Drone System Omnidirectional Denial
Brand: Chongqing Leikan Technology Co., Ltd
SKU: Los requisitos de seguridad de los equipos de ensayo deberán cumplirse en todos los casos.
Availability: InStock

Detalles del producto:

Nombre de la marca:	LeiKan
Número de modelo:	Los requisitos de seguridad de los equipos de ensayo deberán cumplirse en todos los casos.

Información Detallada

Nombre de la marca:

LeiKan

Número de modelo:

Los requisitos de seguridad de los equipos de ensayo deberán cumplirse en todos los casos.

Full-Sphere Spoofing:

Spoofing: 360° horizontal and 0–90° vertical coverage eliminates mechanical rotation and suppresses intruding drones from every direction simultaneously

Multi-Frequency Suppression:

one-click band switching accurately deceives UAVs relying on any satellite constellation

Instant Response:

Locks and spoofs within ≤10 s, instantly triggering forced landing, expulsion, or no-fly enforcement to minimize threat exposure time

All-Weather Guardian:

IP65-rated enclosure, 24-hour continuous operation

Resaltar:

High Light

Resaltar:

Precision Spoofing Anti Drone System

Omnidirectional Anti Drone System

Multi-Frequency Suppression Anti Drone System

Información Comercial

Cantidad de orden mínima:

Condiciones de pago:

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Descripción del Producto

Ⅰ. Product Overview

The is a stationary navigation-spoofing system designed for counter-UAV operations. It synthesizes and radiates GNSS signals that are bit-for-bit identical to authentic on-orbit satellite constellations. By position-spoofing, velocity-spoofing and time-spoofing, the system manipulates any UAV that relies on GPS/GLONASS (and optionally Galileo or BeiDou) for navigation. Typical outcomes include forced landing, expulsion, guided diversion to a predetermined location, or prevention of take-off within a protected zone.

Ⅱ. Key Features

1. Integrated GNSS receiver for real-time synchronization with on-orbit satellites.

2. Adjustable RF output; external amplifier modules can be fitted to extend engagement range.

3. Capable of forced landing, expulsion, directed diversion and no-fly enforcement.

4. Emits spoofing patterns that drive the UAV into circular, straight, constant-speed, variable-speed or curved trajectories.

Precision Spoofing and Multi-Frequency Suppression Anti Drone System Omnidirectional Denial 0

Ⅲ.Technical Parameters

Parameter	Value
Operating Bands	GPS-L1: 1575.42 MHz ± 1.023 MHz
	GLONASS-L1:1602 MHz + N × 0.5625 MHz ± 0.511 MHz (N = −7 … +6)
	Galileo-E1: 1575.42 MHz ± 12.276
	MHzBeiDou-B1:1561.098 MHz ± 2.046
	MHz(customizable)
Operating Mode	Real-time generation of GPS-L1 and GLONASS-L1 spoofing signals; optional generation of Galileo-E1 and BeiDou-B1 spoofing signals
Spoofing Range	0.5–1 km at 10 mW (EIRP)Greater range achievable by increasing transmit power
Spoofing Response Time	≤ 10 s (within effective range)
Effective Spoofing Angle	Horizontal: 360°Vertical: 0–90°
Simultaneous Counter-UAV Capacity	Unlimited
RF Transmit Power	10 mW (EIRP) base unit
Continuous Operation	≥ 24 h
Dimensions	420 mm × 370 mm
Weight	≤ 10 kg
