Ⅰ. Product Overview:
The LKXR-RD106 series is an X-band, medium-range phased-array radar family that uses all-solid-state, fully coherent pulse-Doppler technology enhanced by machine-learning and AI-based recognition. Operating in two-dimensional electronic scan with Track-While-Scan (TAS) capability, the system detects, tracks and classifies “low, slow & small” (LSS) targets day and night, in all weather. Three performance tiers—3 km, 5 km and 8 km—are available under the same compact single-face-array hardware concept.
Ⅱ. Product Features
• AI-Enhanced Recognition: Machine-learning algorithms suppress clutter and deliver reliable detection down to 0.01 m² RCS.
• Three Range Classes: Choose 3 km, 5 km or 8 km coverage to match mission distance and budget.

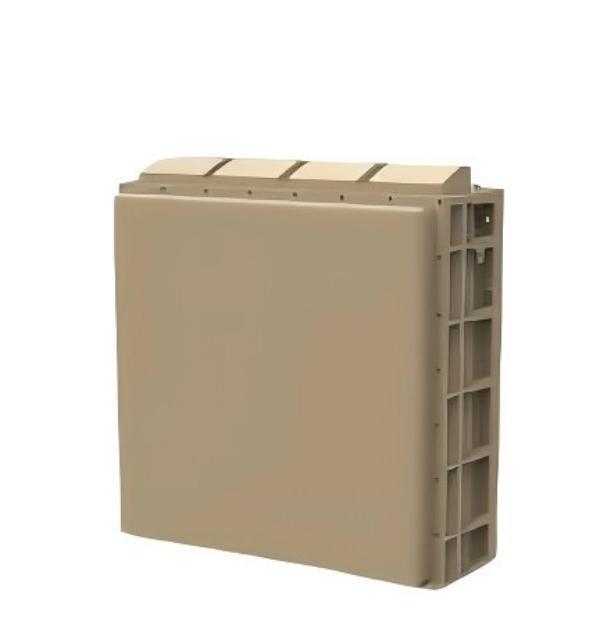

• Ultra-Compact Single-Face Array: All variants <15 kg and <335 mm × 315 mm × 160 mm—fits vehicles, rooftops or tripods.
• 2-D Electronic Scan ±45° Az / 0°–30° El (configurable elevation) with TAS multi-target tracking.
• Dual Power Options: DC 24 V or AC 220 V for rapid field deployment.
• Wide Environmental Tolerance: –40 °C to +70 °C operating range.
Ⅲ. Qualification
|
Specification
|
106A
|
106B
|
106C
|
|
Range (RCS 0.01 m²)
|
≥5 km
|
≥8 km
|
≥3 km
|
|
Blind Zone
|
≤200 m
|
≤200 m
|
≤100 m
|
|
Coverage
|
Az ±45°
El 0°–30° (config.)
|
Az ±45°
El 0°–30° (config.)
|
Az ±45°
El 0°–30° (config.)
|
|
Tracking
|
TAS ≥6 targets
|
TAS ≥6 targets
|
TAS ≥6 targets
|
|
Velocity Range
|
1–100 m/s
|
1–100 m/s
|
1–100 m/s
|
|
Accuracy (Range / Az / El)
|
<10 m / <0.5° / <0.5°
|
<10 m / <0.5° / <0.5°
|
<10 m / <0.5° / <1°
|
|
Update Rate
|
Search ≤3 s
TAS ≤0.5 s
|
TAS ≤0.5 s
Search ≤3 s
|
Search ≤3.5 s
TAS ≤0.5 s
|
|
Interface
|
Ethernet
|
Ethernet
|
Ethernet
|
|
Weight
|
≤13 kg
|
≤15 kg
|
≤13 kg
|
|
Power Supply
|
DC 24 V / AC 220 V
|
DC 24 V / AC 220 V
|
DC 24 V / AC 220 V
|
|
Power Consumption
|
≤300 W
|
≤500 W
|
≤220 W
|
|
Dimensions (mm)
|
335 × 315 × 133
|
335 × 315 × 160
|
335 × 315 × 133
|
|
Operating Temperature
|
–40 °C～+70 °C
|
–40 °C～+60 °C
|
–40 °C～+70 °C
|
Ⅳ. Selling Points
• One Size, Three Powers: Same lightweight aperture scales from 3 km to 8 km—no extra training, spares or logistics.
• 100–200 m Ultra-Short Blind Zone: Captures threats right at the perimeter.
• Sub-Second TAS Refresh: ≤0.5 s target update ensures zero-latency cueing for intercept.
• Ultra-Low Power: 220–500 W consumption slashes energy and cooling costs.
• True Carry-and-Deploy: ≤15 kg and suitcase footprint—no crane, no special mount.
