8km Fast reaction 360° Continuous Coverage Low-altitude Surveillance Radar Cost-effective

Ⅰ.  Product Overview:

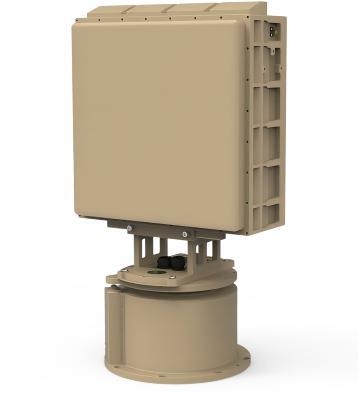

The LKXR-RD108 series is an X-band medium-range phased-array radar for low-altitude surveillance. It employs all-solid-state, fully coherent, pulse-Doppler technology and integrates machine-learning/AI-based intelligent recognition algorithms to detect, track and identify “low, slow & small” targets (e.g., drones, ultralight aircraft, paragliders) in all weather. A hybrid scanning mode—2-D electronic beam steering plus mechanical rotation—delivers 360° full-airspace coverage at an outstanding price/performance ratio. Three performance levels are offered: 3 km, 5 km and 8 km detection range against 0.01 m² RCS targets.

Ⅱ.  Product Features

• All-solid-state phased array:

no rotary joints or high-voltage devices; MTBF > 20,000 h and low maintenance.

• AI-based classification:

on-board GPU+FPGA compute, classifies drones vs. birds vs. balloons with <2 % false-alarm rate.

• Hybrid scanning:

mechanical rotation for fast 360° search, electronic beam steering for high-precision stare & track; seamless switch between search and TAS tracking.

• Ultra-short blind zone:

as low as ≤100 m for ground-skimming or sea-skimming targets.

• Compact & lightweight:

≤30 kg, man-portable; supports fixed mast, vehicle mount or tripod deployment.

• Ruggedized:

‑40 °C to +70 °C operating range, salt-fog, fungus and humidity resistant per GJB150A.

• Green & efficient:

peak power ≤530 W; accepts 24 V DC or 220 V AC; optional PV+battery kit for field use.

• Open interface:

standard Gigabit Ethernet, supports TCP/UDP, HTTP, ONVIF and Restful API for easy integration into C-UAS, ADS-B or EO/IR systems.

Ⅲ. Qualification

Ⅳ. Selling Points

• Longest range:

up to 8 km for 0.01 m² drones—>20 % better than competing products in the same class.

• High accuracy:

<10 m range, <0.5° azimuth/elevation—enables precise cueing of EO/IR or counter-UAS effectors.

• Fast reaction:

search frame ≤3.8 s, TAS update ≤0.5 s, acquisition-to-track <3 s.

• Cost-effective:

phased-array performance at legacy mechanical-radar prices—>30 % lower than market average in volume orders.

• True portability:

≤30 kg, <0.02 m³ folded volume; two units fit in one SUV.

• Field-friendly:

≤530 W power draw; runs directly from a vehicle 24 V battery—no generator required.

• Ecosystem ready:

Windows/Linux/Kylin SDKs available; already integrated with 20+ leading EO, jamming and GNSS-spoofing vendors.
